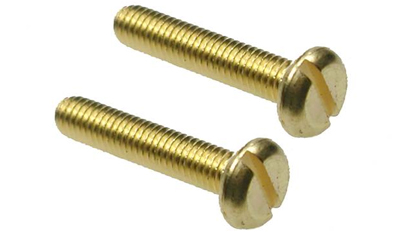

Brass Pan Head Screws Din 85
Brass Screws And Fasteners are one of the leading manufacturers of all kinds of Brass, Copper and Stainless Steel Screws and Fasteners. We offer a range of components in various grades, specifications, head types, threads and materials. We have upgraded bolt formers, nut formers, CNC machining center and cold forging machines. We export to more than 40 countries around the world including quality conscious markets like USA, UK, France, Germany, Australia, etc.
Our Manufacturing Range Includes:
Brass Pan Head Screws Din 85

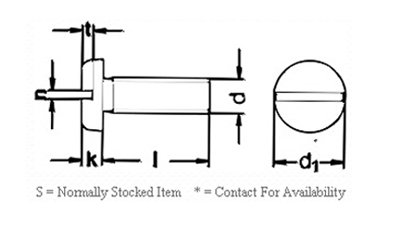

Diameter | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 |
---|---|---|---|---|---|---|---|---|
t | 0.5 | 0.6 | 0.7 | 1 | 1.2 | 1.5 | 1.9 | 2.4 |
n | 0.6 | 0.6 | 0.8 | 1 | 1.2 | 1.6 | 2 | 2.5 |
k | 1.2 | 1.5 | 1.8 | 2.4 | 3 | 3.6 | 4.8 | 6 |
d1 | 4 | 5 | 6 | 8 | 10 | 12 | 16 | 20 |
Length in (mm) | M025 | |||||||
3 | S | |||||||
4 | S | |||||||
5 | S | S | S | |||||
6 | S | S | S | S | * | |||
8 | S | S | S | S | S | * | ||
10 | S | S | S | S | S | * | ||
12 | S | S | S | S | S | S | ||
16 | S | S | S | S | S | S | S | |
18 | S | S | ||||||
20 | S | S | S | S | * | * | ||
25 | S | S | S | S | * | * | ||
30 | S | S | S | S | * | * | ||
35 | S | S | S | * | * | |||
40 | S | S | S | * | * | |||
45 | * | * | ||||||
50 | * | * | * | * | ||||
60 | * | * | * | |||||
70 | * | * | * | |||||
80 | * |
